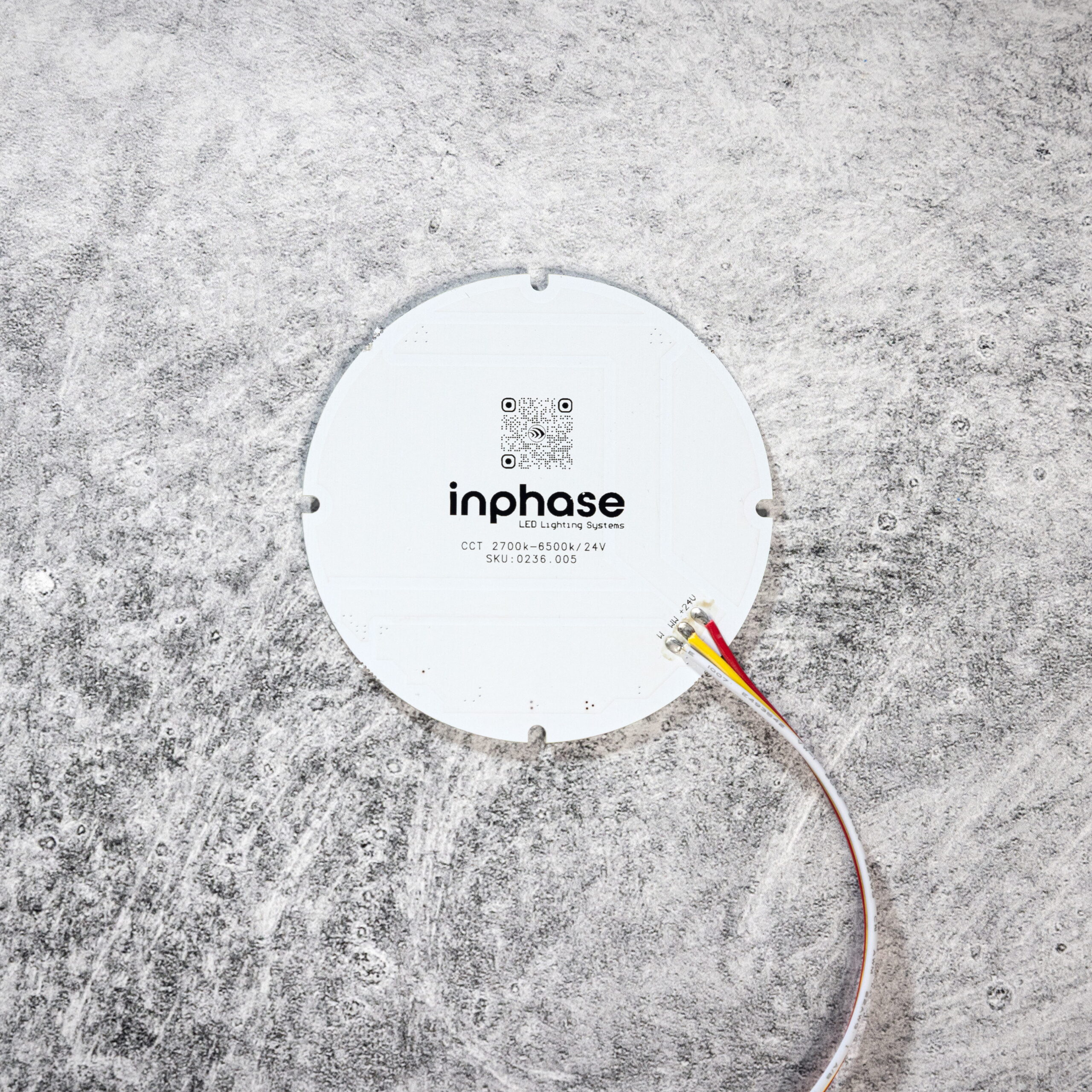

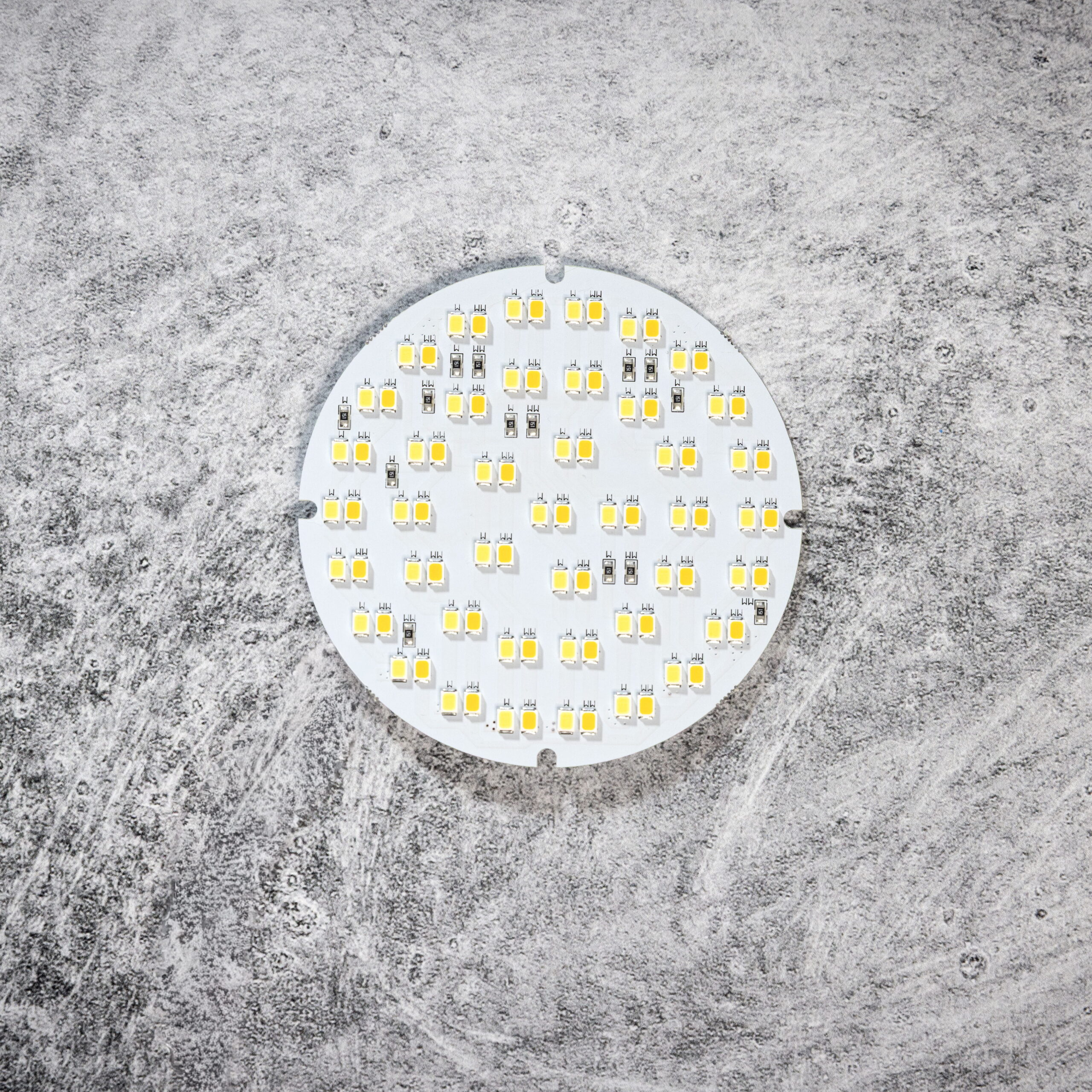

The Inphase Hybrid CCT Plate Light 80MM is the higher-output sibling in the Hybrid CCT Plate family, purpose-built for scenic integration, set construction, and architectural installations that demand greater luminous coverage without sacrificing the ultra-low-profile form factor the line is known for. Spanning a continuous CCT range of 2700K to 6500K on a stable 24V platform, the fixture gives lighting designers fluid, repeatable control across the full white light spectrum, from warm tungsten-equivalent tones through to crisp daylight, all from a single unified disc. At just 0.77mm tall and 80mm wide, the plate maintains the near-invisible cross-section that makes scenic and cove integration possible in environments where conventional fixtures cannot be accommodated. A 96-chip 2835 array nearly doubles the chip density of the 60MM variant, supporting a total draw of 13.6W at full power with 6.8W on the warm white channel and 6.9W on the cool white channel, giving designers a more robust output option while retaining the same predictable, calculation-friendly power architecture. A CRI of 93 holds consistent, production-grade color accuracy across the entire tuning range, and the integrated 6-inch color-correct PCB tail ensures a clean, ready-to-connect termination straight from the fixture.
SPECIFICATIONS
- CCT Range: 2700K to 6500K (Hybrid Tunable White)
- Input Voltage: 24V DC
- Wattage
- Total (100% Power): 13.6W
- Warm White Channel (100% Power): 6.8W
- Cool White Channel (100% Power): 6.9W
- CRI: 93
- LED Chip: 2835
- Chips per Disc: 96
- PCB Tail: 6-inch color-correct lead
- Width: 80mm / 3-1/8″
- Height: 0.77mm / 1/32″
- IP Rating: IP20 — Indoor use only
