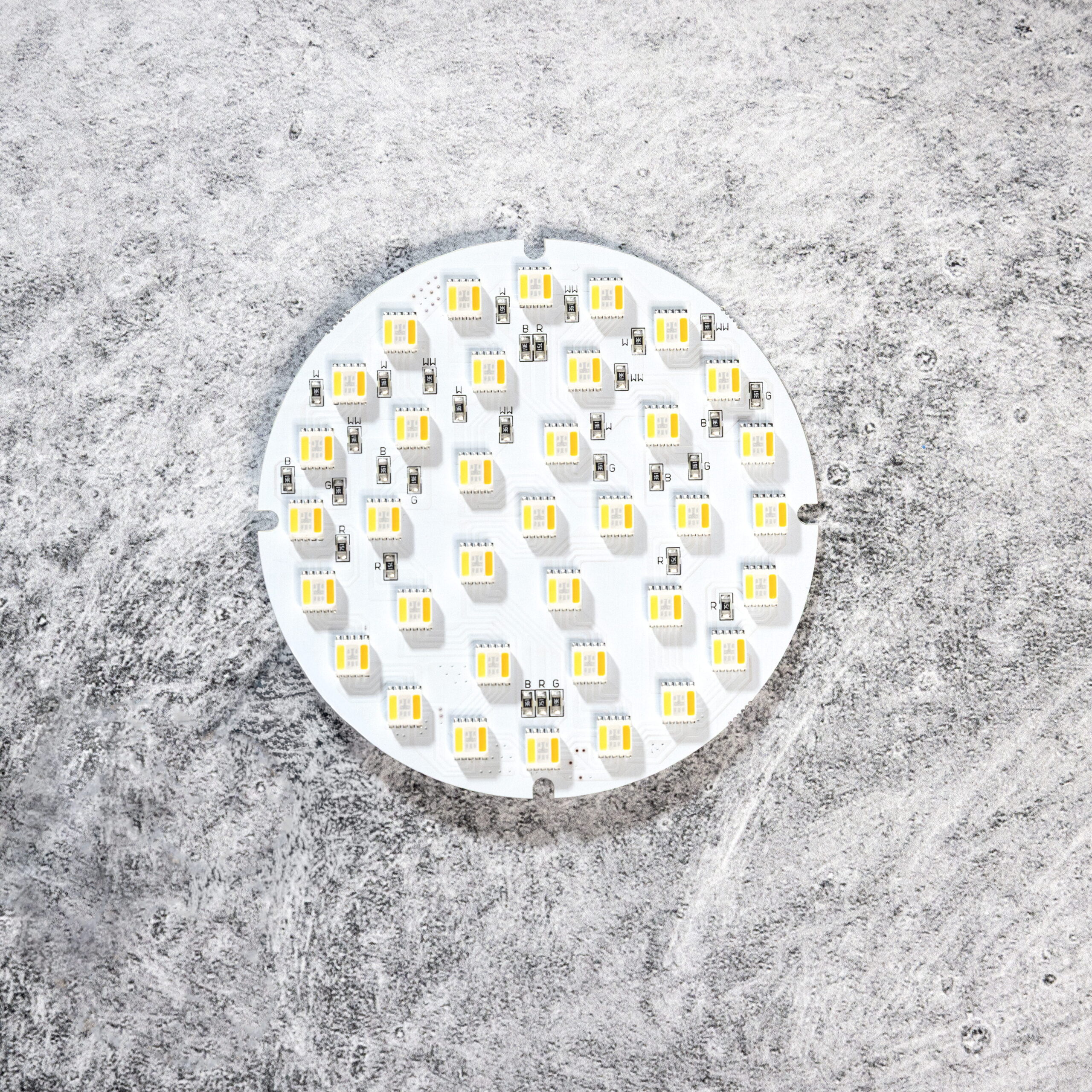

The Inphase RGBAW Plate Disc 80MM is the high-output evolution of the RGBAW Plate family, delivering the same five-channel full-spectrum color architecture of its 60MM counterpart in a wider disc format engineered for applications that demand greater luminous coverage across scenic surfaces, coves, and built environments. Red, green, and blue channels combine with a dedicated 1800K amber and an independent 6000K cool white, giving lighting designers a color tool that moves seamlessly from deep, saturated hues through to organically warm practical tones and clean neutral daylight without relying on channel simulation to fill gaps in the gamut. The 80MM geometry houses 36 chips per disc on a 5050 platform, doubling the chip count of the 60MM variant and supporting a per-channel power architecture of 2.2W on red, 2.5W on green, 2.4W on blue, and 2.8W each on amber and white, for a total system draw of 13.2W at full power across all channels. At just 0.77mm tall, the disc retains the near-invisible cross-section that defines the Plate family, making it equally at home recessed into a scenic build as it is integrated into a precision architectural installation. A CRI of 93 and a 6-inch color-correct PCB tail ensure production-grade color fidelity and a clean, ready-to-connect termination straight from the fixture.
SPECIFICATIONS
- Color Channels: Red, Green, Blue, Amber (1800K), White (6000K)
- Input Voltage: 24V DC
- Wattage
- Total (100% Power, All Channels): 13.2W
- Red Channel (100% Power): 2.2W
- Green Channel (100% Power): 2.5W
- Blue Channel (100% Power): 2.4W
- Amber Channel / 1800K (100% Power): 2.8W
- White Channel / 6000K (100% Power): 2.8W
- CRI: 93

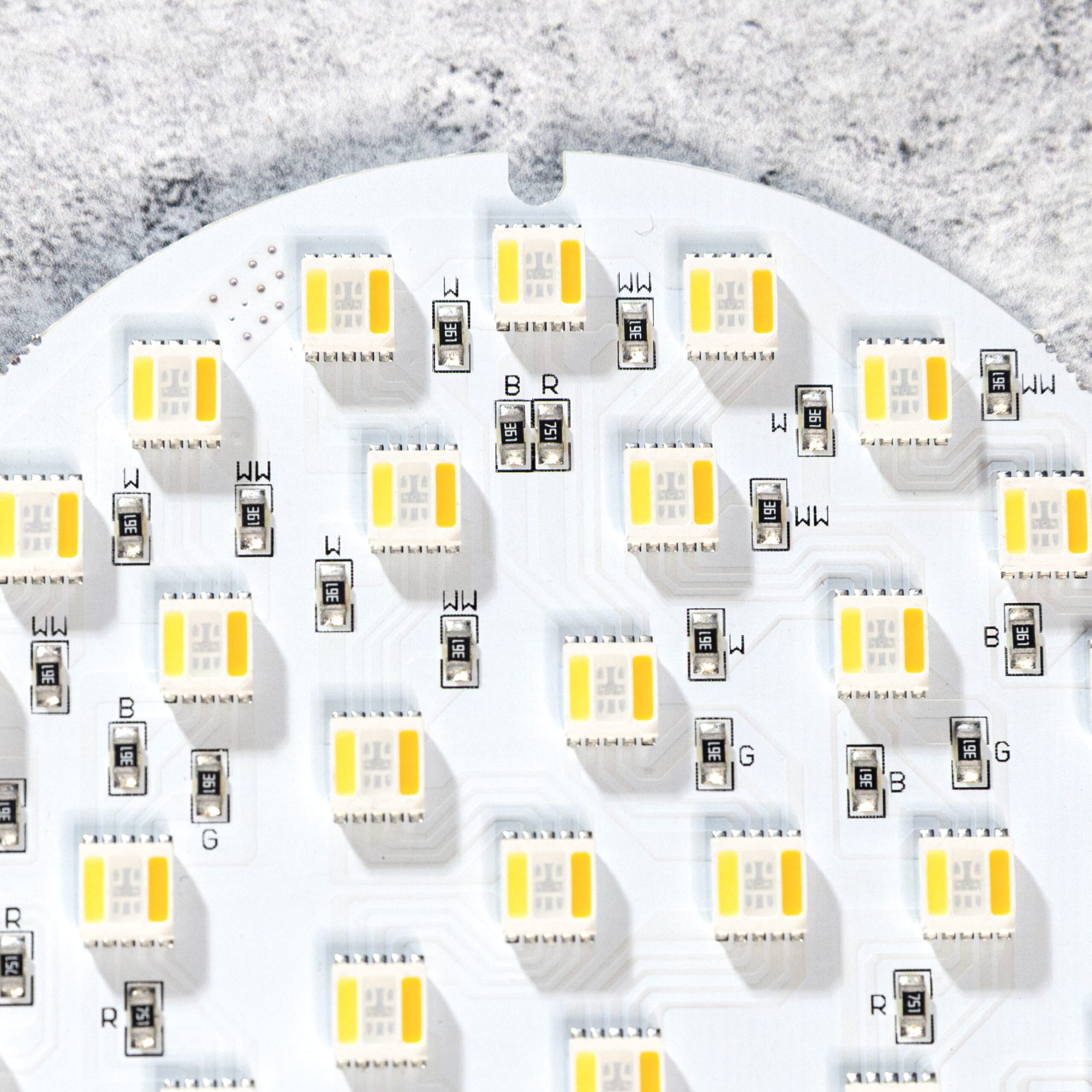

- LED Chip: 5050
- Chips per Disc: 36

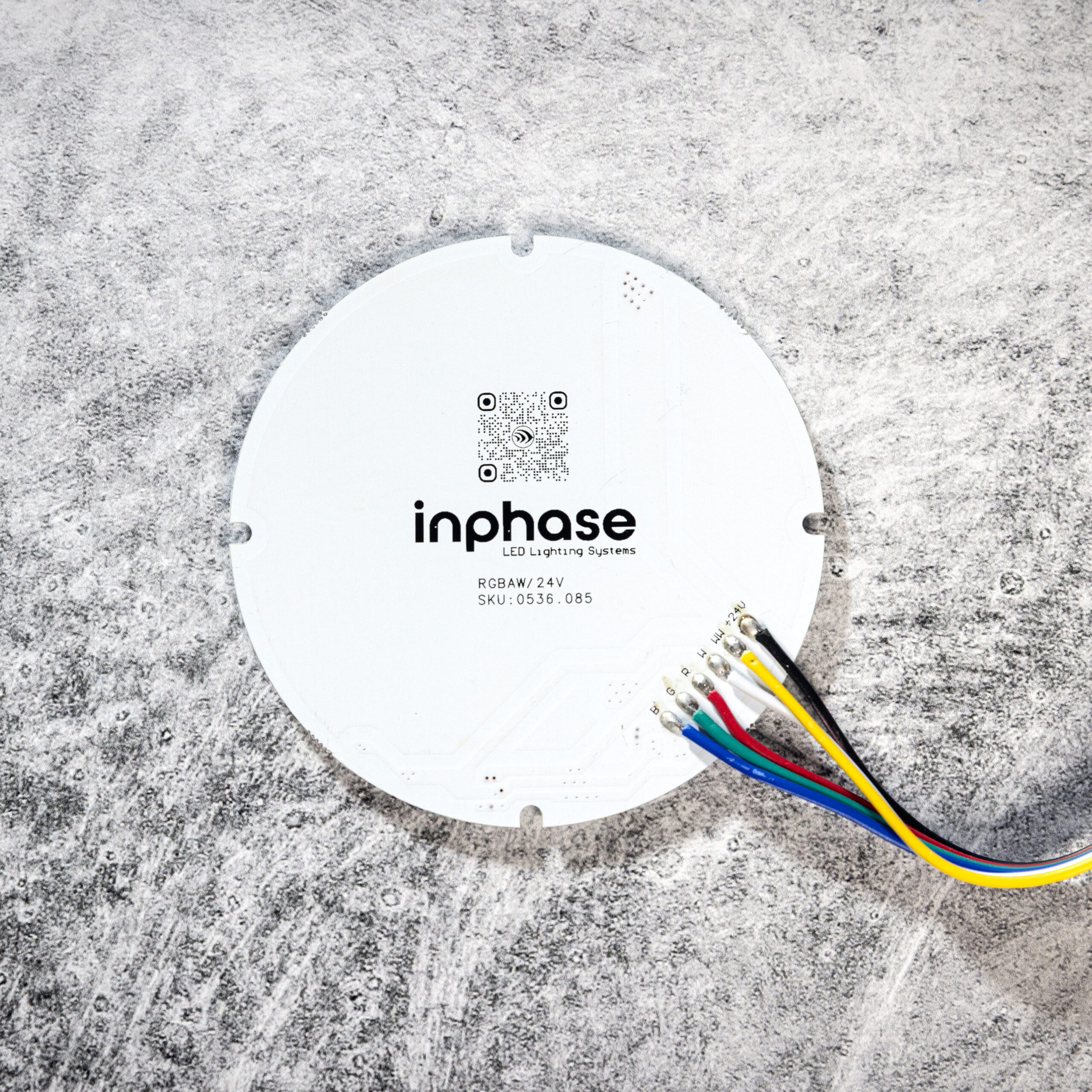

- PCB Tail: 6-inch color-correct lead
- Width: 80mm / 3-1/8″
- Height: 0.77mm / 1/32″
- IP Rating: IP20 — Indoor use only
