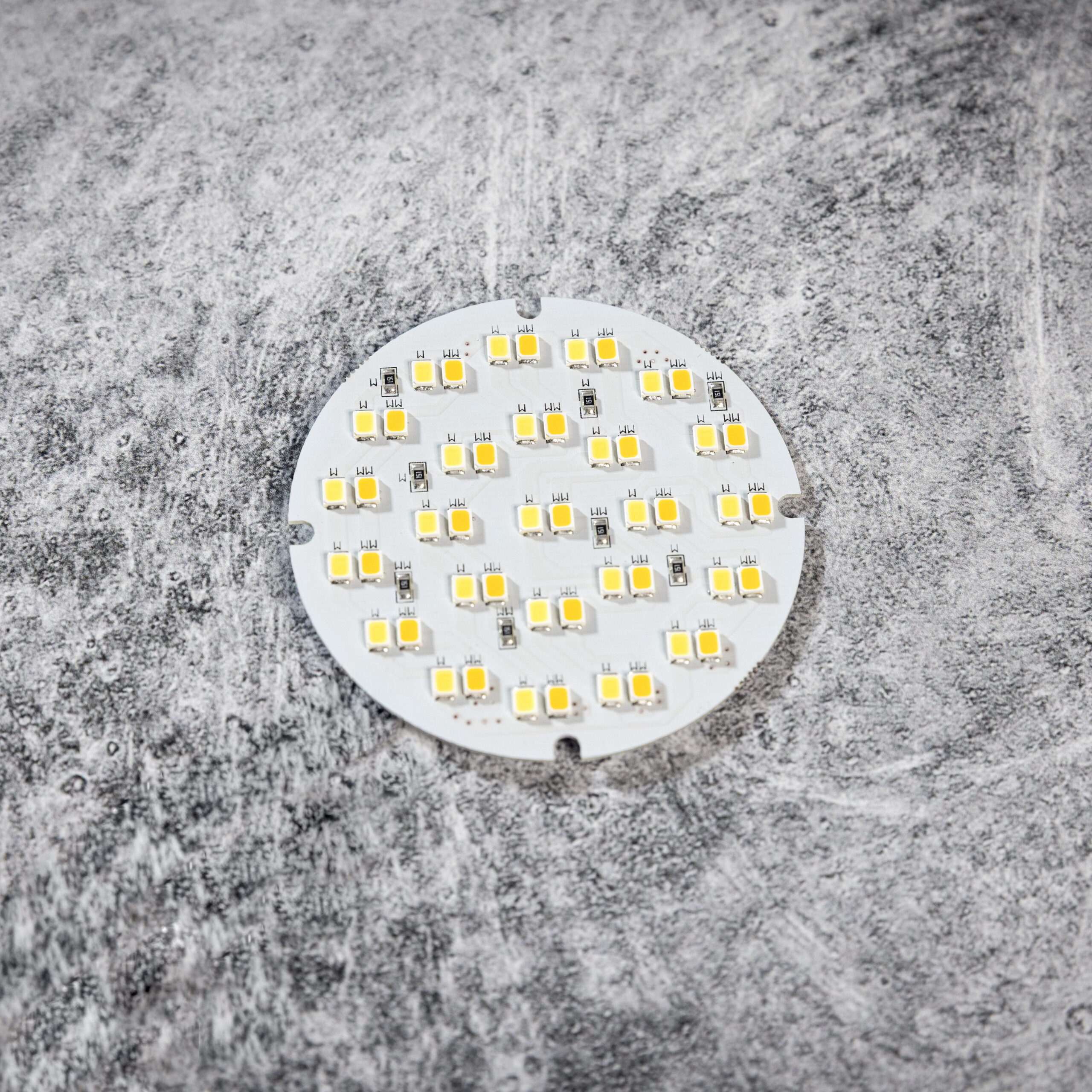

Hybrid CCT (2700k-6500k) Plate Light, 24V, 60MM Width

The Inphase Hybrid CCT Plate Light is a precision-engineered tunable white LED solution designed for scenic integration, set construction, and architectural lighting applications where a low-profile footprint is as critical as light quality. Spanning a continuous CCT range of 2700K to 6500K on a stable 24V platform, the plate gives lighting designers seamless, repeatable control from warm tungsten-equivalent tones through to full daylight, all within a single, unified fixture. At just 0.77mm tall and 60mm wide, its near-invisible cross-section makes it one of the most spatially efficient LED plate solutions available, opening up integration possibilities inside scenic elements, coves, channels, and built environments where conventional strip or panel fixtures simply won’t fit. A CRI of 93 ensures honest, production-grade color rendering across the full tuning range, while the integrated 6-inch color-correct PCB tail provides a clean, ready-to-connect termination out of the box. Drawing a balanced 3.5W per channel at full power for a total of 7W, the fixture delivers a controlled, predictable power draw that simplifies load calculations across large-scale scenic installations. Driven by a high-density array of 2835 chips with 48 per disc, the Inphase Hybrid CCT Plate Light is built for productions where optical precision and spatial efficiency are equally non-negotiable.

SPECIFICATIONS

• CCT Range: 2700K – 6500K (Hybrid Tunable White)
• Input Voltage: 24V DC
• Wattage
  • Total (100% Power): 7W
  • Cool White Channel (100% Power): 3.5W
  • Warm White Channel (100% Power): 3.5W
• CRI: 93
• LED Chip: 2835
• Chips per Disc: 48
• PCB Tail: 6-inch color-correct lead
• Width: 60mm / 2-11/32″
• Height: 0.77mm / 1/32″
• IP Rating: IP20 — Indoor use only
