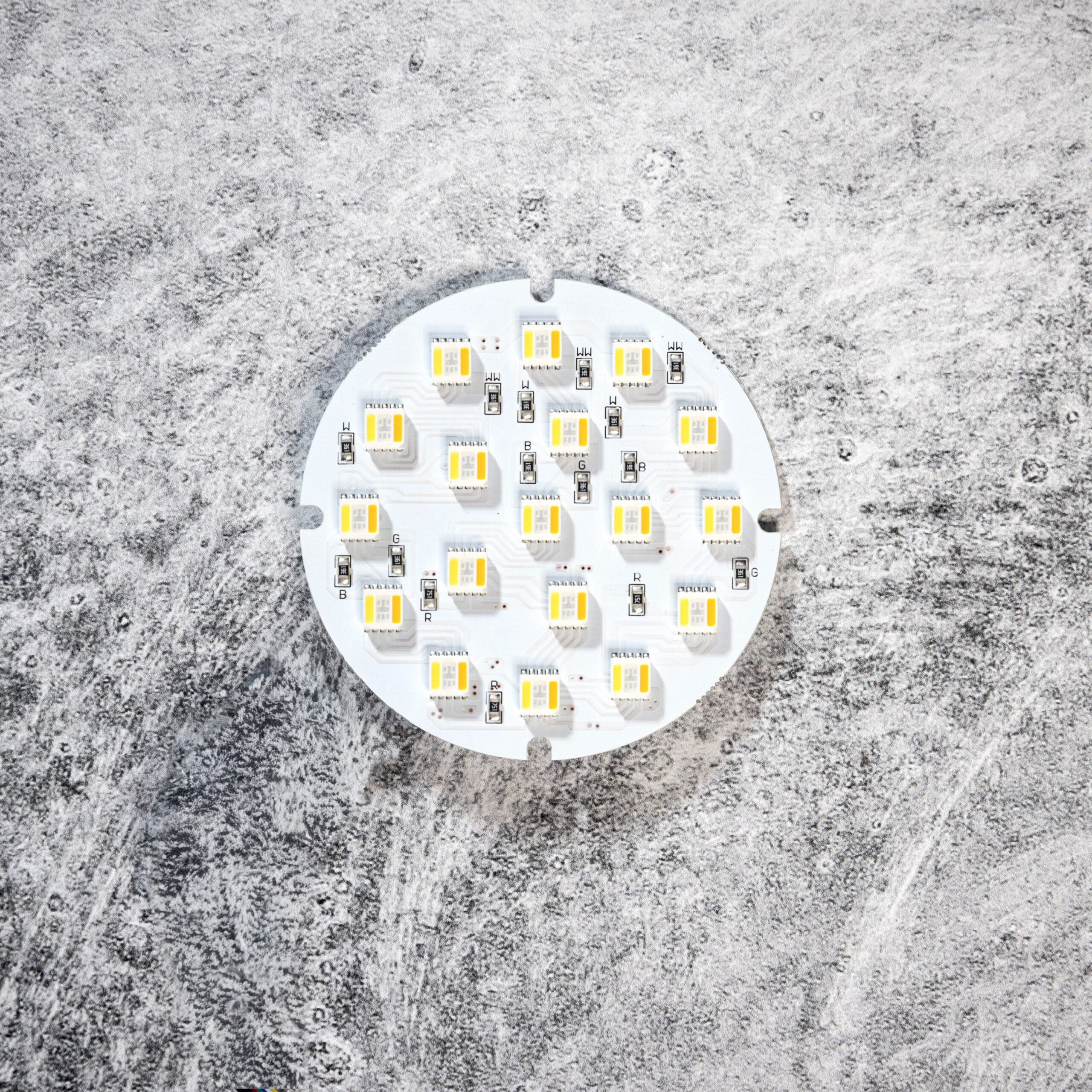

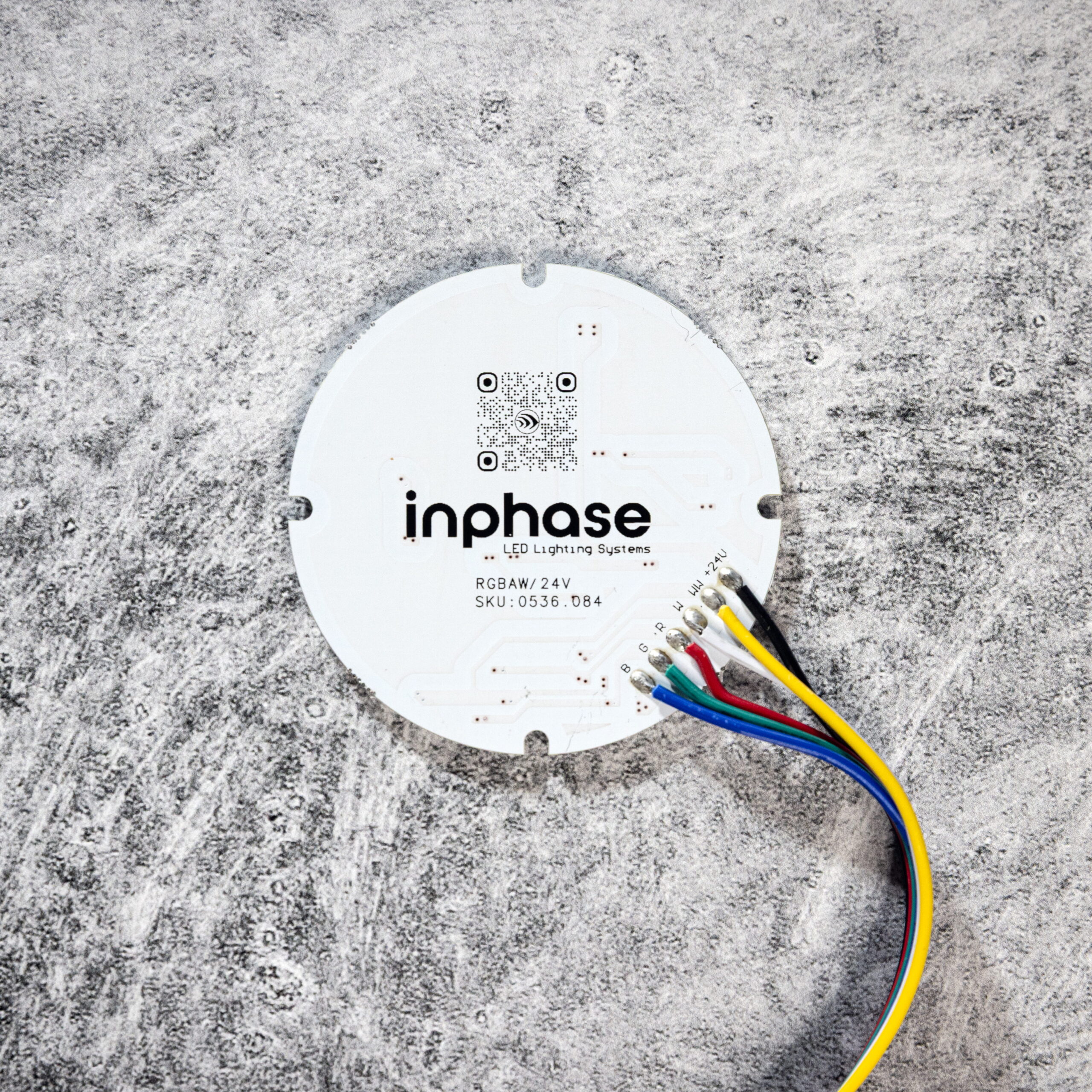

The Inphase RGBAW Plate Light 60MM brings full-spectrum color capability to the ultra-low-profile Plate Light family, offering scenic designers and lighting professionals a five-channel solution that spans from saturated RGB color mixing through to a dedicated 1800K amber and a fixed 6000K cool white, all within the same near-invisible 0.77mm form factor the line is built around. The inclusion of a true amber channel at 1800K moves beyond the limitations of amber-simulated RGB mixing, delivering a richer, more organic warmth that holds up under camera and to the eye alike, while the independent 6000K white channel provides a clean, neutral daylight anchor for scenes requiring precise tonal control without sacrificing color saturation headroom on the remaining channels. Each of the five channels is individually addressable at 24V, drawing 1.2W on red, green, and blue respectively and 1.3W each on amber and white, for a total system draw of 6.4W at full power across all channels. The 5050 chip platform accommodates the multi-emitter RGBAW configuration within 18 chips per disc, maintaining the compact disc geometry while supporting the full color gamut. A CRI of 93 and a 6-inch color-correct PCB tail complete a fixture purpose-built for productions where color precision and spatial integration must coexist.
SPECIFICATIONS
- Color Channels: Red, Green, Blue, Amber (1800K), White (6000K)
- Input Voltage: 24V DC
- Wattage
- Total (100% Power, All Channels): 6.4W
- Red Channel (100% Power): 1.2W
- Green Channel (100% Power): 1.2W
- Blue Channel (100% Power): 1.2W
- Amber Channel / 1800K (100% Power): 1.3W
- White Channel / 6000K (100% Power): 1.3W
- CRI: 93

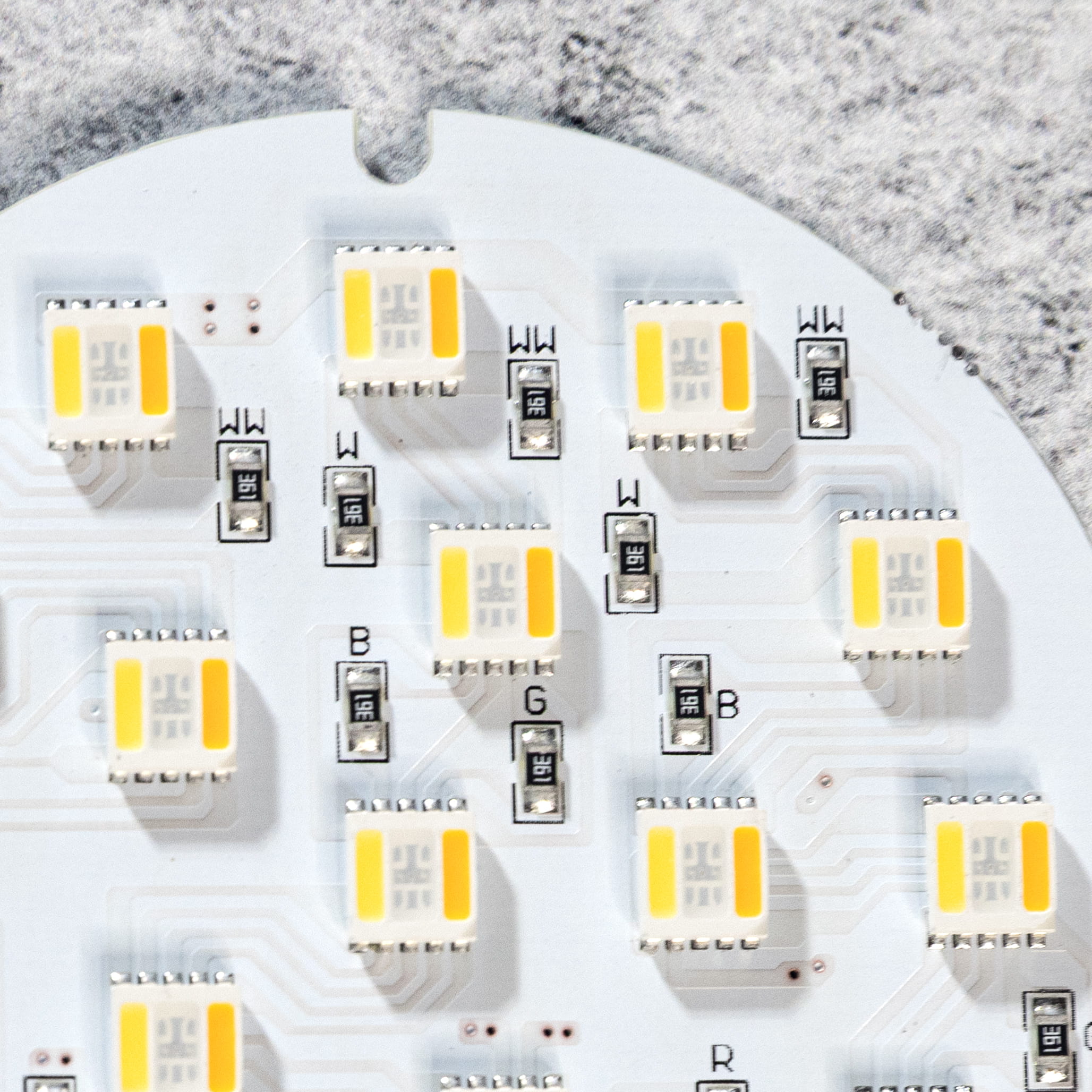

- LED Chip: 5050
- Chips per Disc: 18
- PCB Tail: 6-inch color-correct lead
- Width: 60mm / 2-11/32″
- Height: 0.77mm / 1/32″
- IP Rating: IP20 — Indoor use only
