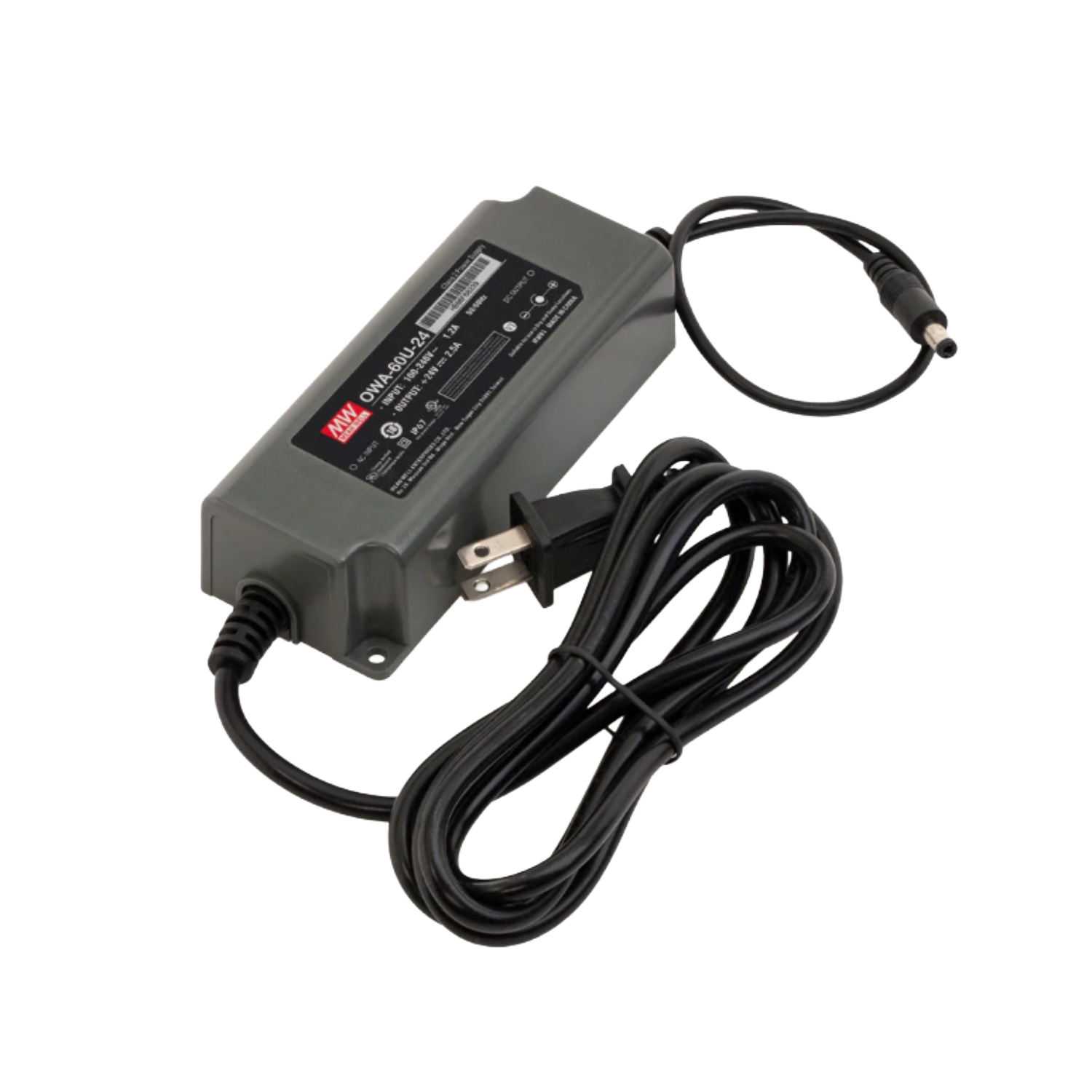

Not every LED installation calls for a large, high-output driver. The Mean Well OWA-60U-24 is built for exactly the opposite scenario: compact, self-contained installations where a standard 2-pin AC plug is all you need to get power to your lights. At 60W and 24V, it delivers clean constant voltage and constant current output through a barrel connector output, making it one of the most straightforward power solutions in the Inphase catalog.
IP67 rated despite its external adapter form factor, it handles moisture and dust without issue. The fully isolated plastic enclosure carries Class II certification with no functional ground required, simplifying compliance in installations where grounding is a constraint. Efficiency hits 91% and it draws less than 0.15W at no load, meeting Level VI energy efficiency requirements. Each unit ships with the mating barrel connector included, allowing for direct connection to dimmers, decoders, or controllers right out of the box.
Input voltage spans 90 to 264V AC, covering virtually any standard outlet worldwide. Protection covers short circuit, over-current, over-voltage, and over-temperature. Cooling is entirely passive. For smaller builds, pop-up installations, and applications where a full chassis-mount driver is more than the job needs, this unit keeps things simple without compromising on build quality or protection.
Specifications
- Manufacturer: Mean Well
- Model: OWA-60U-24
- Output Power: 60W
- Output Voltage: 24V DC
- Output Current (Max): 2.5A
- Output Type: Constant Current / Constant Voltage
- Input Voltage: 90-264V AC
- Input Current: 1.2A
- Efficiency: 91%
- No-Load Power Consumption: Less than 0.15W
- Dimming: None (fixed output)
- IP Rating: IP67
- Classification: Class II / Class 2 (no FG required)
- Operating Temperature: -35°C to 70°C
- Cooling: Free air convection (fanless)
- Protections: Short Circuit, OCP, OVP, OTP
- Output Connector: Barrel plug
- Included Accessories: Mating barrel connector
- Form Factor: External adapter with 2-pin AC plug
- Dimensions: 5.19″ L x 2.09″ W x 1.38″ H (131.75 x 53.3 x 35.1mm)
- Warranty: 5 years
