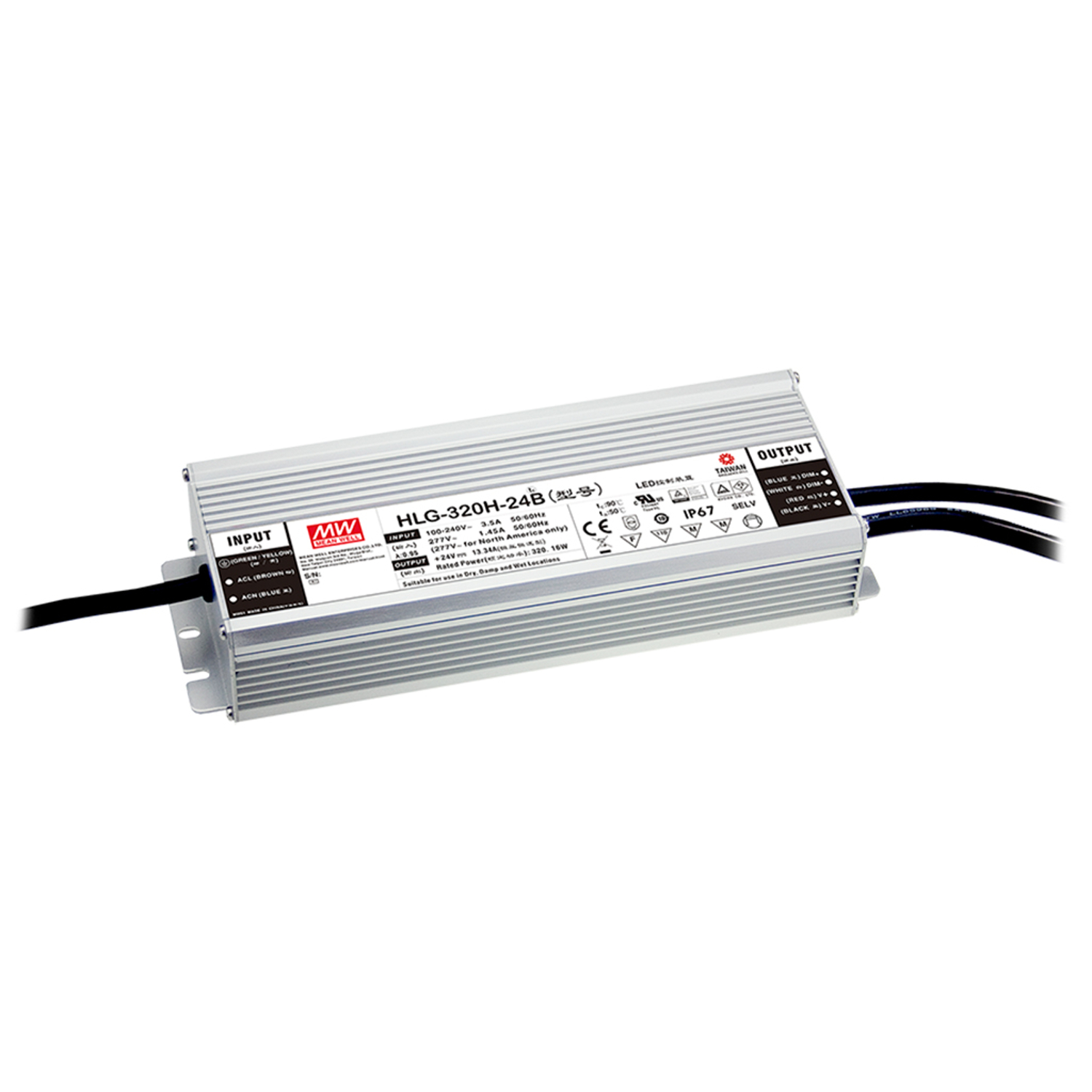

Not every build needs 600 watts. The Mean Well HLG-320H-24B hits the sweet spot for mid-scale LED installations where a full 600W driver is overkill but a smaller unit leaves you short. At 320W continuous output with 13.34A at 24V, it powers a substantial run of LED tape cleanly and reliably, with the same professional-grade build quality Inphase carries across the entire Mean Well line.
The B-type designation means built-in dimming across three methods: 1-10V, PWM, and resistance. That flexibility gives integrators and lighting designers control options without additional hardware, making the HLG-320H-24B equally at home in a permanently installed architectural rig with a 0-10V dimming system and a production build running PWM from a controller.
IP67 rated and built to operate across an input voltage range of 90 to 305V AC, it handles domestic and international circuits without modification. Efficiency sits at 94%, meaning less heat in the enclosure, less energy wasted, and longer system life. The operating temperature range runs from -40°C to 90°C, and it carries a 7-year manufacturer’s warranty.
Protection is comprehensive across short circuit, over-voltage, and over-temperature conditions. Cooling is passive with no fan, no noise, and no moving parts to fail.
Specifications
Manufacturer: Mean Well
Model: HLG-320H-24B
Output Power: 320W
Output Voltage: 24V DC
Output Current (Max): 13.34A
Output Type: Constant Current / Constant Voltage
Input Voltage: 90-305V AC
Efficiency: 94%
Dimming: 1-10V, PWM, Resistance
IP Rating: IP67
Isolation Voltage: 3.75 kV
Operating Temperature: -40°C to 90°C
Cooling: Free air convection (fanless)
Protections: Short Circuit, OVP, OTP
Dimensions: 9.92″ L x 3.54″ W x 1.72″ H (252 x 90 x 43.8mm)
Warranty: 7 years
