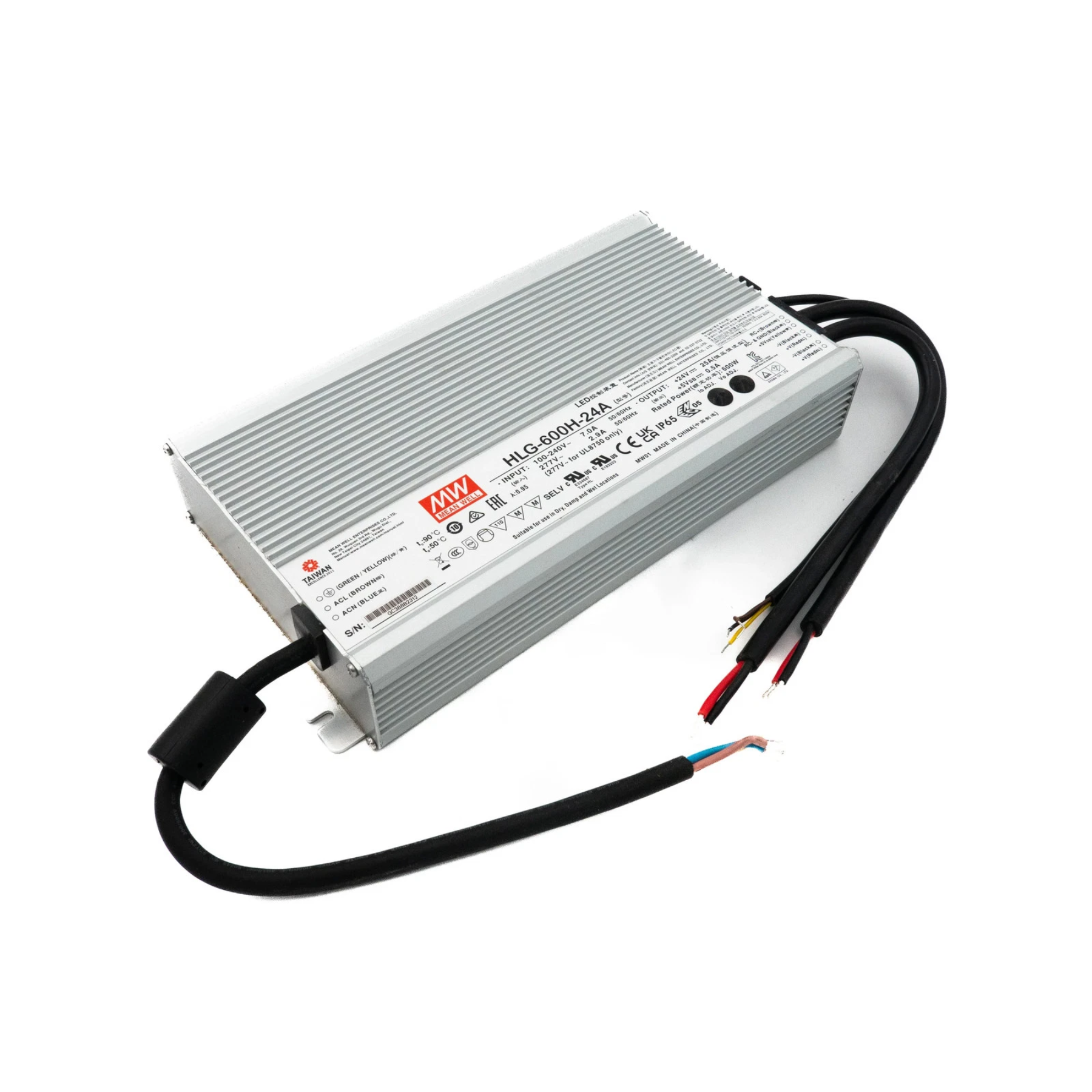

When a build needs serious, reliable power without the complexity of a custom power solution, the Mean Well HLG-600H-24A is the unit Inphase reaches for. A professional-grade LED driver rated at 600W continuous output, it delivers up to 25A at 24V with both constant current and constant voltage capability, enough to power large-scale LED installations without a second power source in the rig.
Built for permanent and production environments alike, the HLG-600H-24A is IP65 rated, handling dust and moisture without complaint, and operates across a wide input voltage range of 90V to 305V AC, making it equally at home on US 120V circuits and international 240V systems. Operating efficiency hits 95%, meaning less heat, less wasted energy, and longer system life in enclosed or tight installations.
Where this driver earns its place on demanding builds is in its protection suite. Remote on/off control, over-current protection, over-temperature protection, over-voltage protection, and short circuit protection are all built in. The kind of redundancy that matters on a live set or a permanent architectural install where a power failure is not an option. The chassis mount form factor and wire lead termination keep the install clean and straightforward.
Certified by CB, CE, cURus, CCC, ENEC, and PSE, this is a driver built and tested to professional standards across every major global market.
Specifications
- Manufacturer: Mean Well
- Mode:l HLG-600H-24A
- Output Power: 600W
- Output Voltage: 20.4 to 25.2V (24V nominal)
- Output Current (Max): 25A
- Output Type: Constant Current / Constant Voltage
- Input Voltage: 90V to 305V AC
- Efficiency: 95%
- IP Rating: IP65
- Isolation Voltage: 3.75 kV
- Operating Temperature: -40°C to 90°C
- Protections: OCP, OVP, OTP, SCP, Remote On/Off
- Termination: Wire Leads
- Mounting: Chassis Mount
- Dimensions: 9.97″ L x 5.67″ W x 1.91″ H (253.2 x 144.0 x 48.5mm)
- Certifications: CB, CE, cURus, CCC, ENEC, PSE
