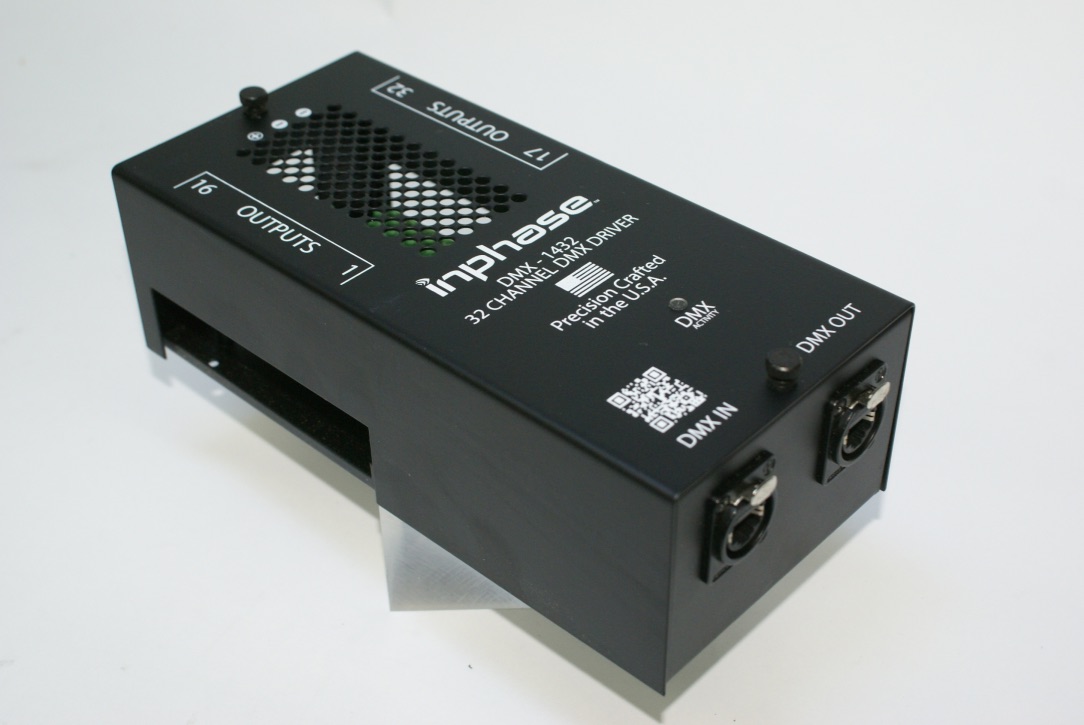

The DMX1432 is a fully configurable, high-power DMX driver engineered for demanding professional environments where flexibility, reliability, and on-camera performance matter. Designed primarily for LED tape applications but compatible with resistive and LED loads—including solid-state relays—the DMX1432 delivers exceptional control across studios, stages, architectural builds, and specialty fabrication projects.
Its advanced PWM dimming engine operates at 7.3 kHz, preventing visible flicker in broadcast and film applications. For installations requiring even greater performance, the PWM frequency can be increased to 14.6 kHz or 29.3 kHz, ensuring clean, artifact-free output under the most sensitive cameras.
The DMX1432 uses industry-standard Neutrik DMX connectors and removable Phoenix terminal blocks for clean, modular load connections. With a total available load capacity of 60A and support for 9–48V DC systems, it delivers up to 720W at 12V or 2.8 kW at 48V, making it suitable for both compact scenic builds and large-scale architectural installations.
Proudly designed and manufactured in the USA.
Specifications:
Output Channels: 32 (configurable as 1, 4, 5, 8, 10, 16, or 32 channels)
Compatible Loads: LED tape, resistive loads, LED loads including SSR
System Power: 9–48V DC
Max Load: 60A total
720W @ 12V
2.8kW @ 48V
PWM Frequency: 7.3 kHz (upgradeable to 14.6 kHz or 29.3 kHz)
Connectors: Neutrik DMX In/Out; removable Phoenix terminal blocks for outputs
Chassis: Powder-coated aluminum with silkscreen labeling
Additional Features: Built-in test mode; on-enclosure QR code for support resources
