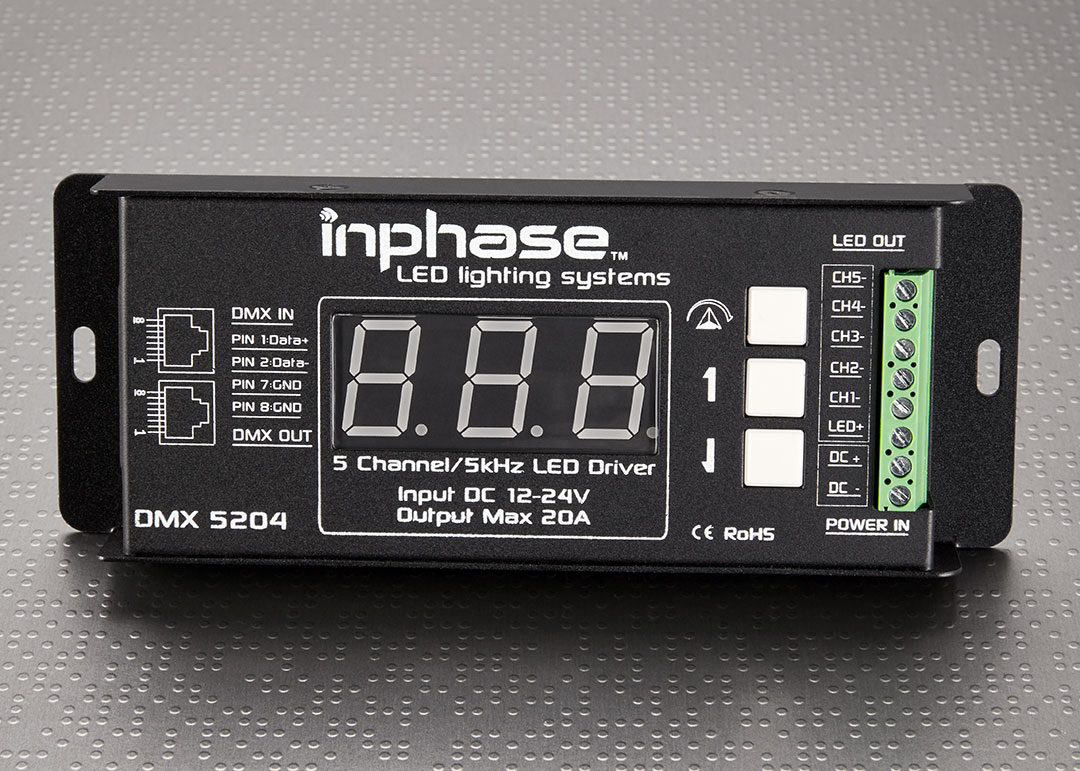

The DMX5204 is a compact, high-performance DMX decoder engineered for professional installations that require smooth, flicker-free LED control across 5 independent channels. Designed for architectural lighting, scenic elements, broadcast environments, and custom fabrication projects, it delivers stable constant-voltage output with a 5000 Hz PWM frequency to ensure clean performance on camera and in low-light applications.
A digital display allows quick DMX address assignment without DIP switches, while RJ45 and terminal block connections offer flexible integration into new or existing control systems. With a maximum output of 4A per channel (20A total) and compatibility with both 12V and 24V LED systems, the DMX5204 provides the power and precision needed for modern multi-channel applications.
Specifications
Voltage: DC 12–24V
Max Load Power: 240W (12V) / 480W (24V)
Max Current Load: 4A × 5 channels (20A total)
Signal Input: DMX512 / 1990
Output Signal: Constant Voltage
PWM Frequency: 5000 Hz
Addressing: Digital tube display
DMX / PWM Interface: RJ45 DMX In/Out, screw-terminal In/Out
Protection Grade: IP20
