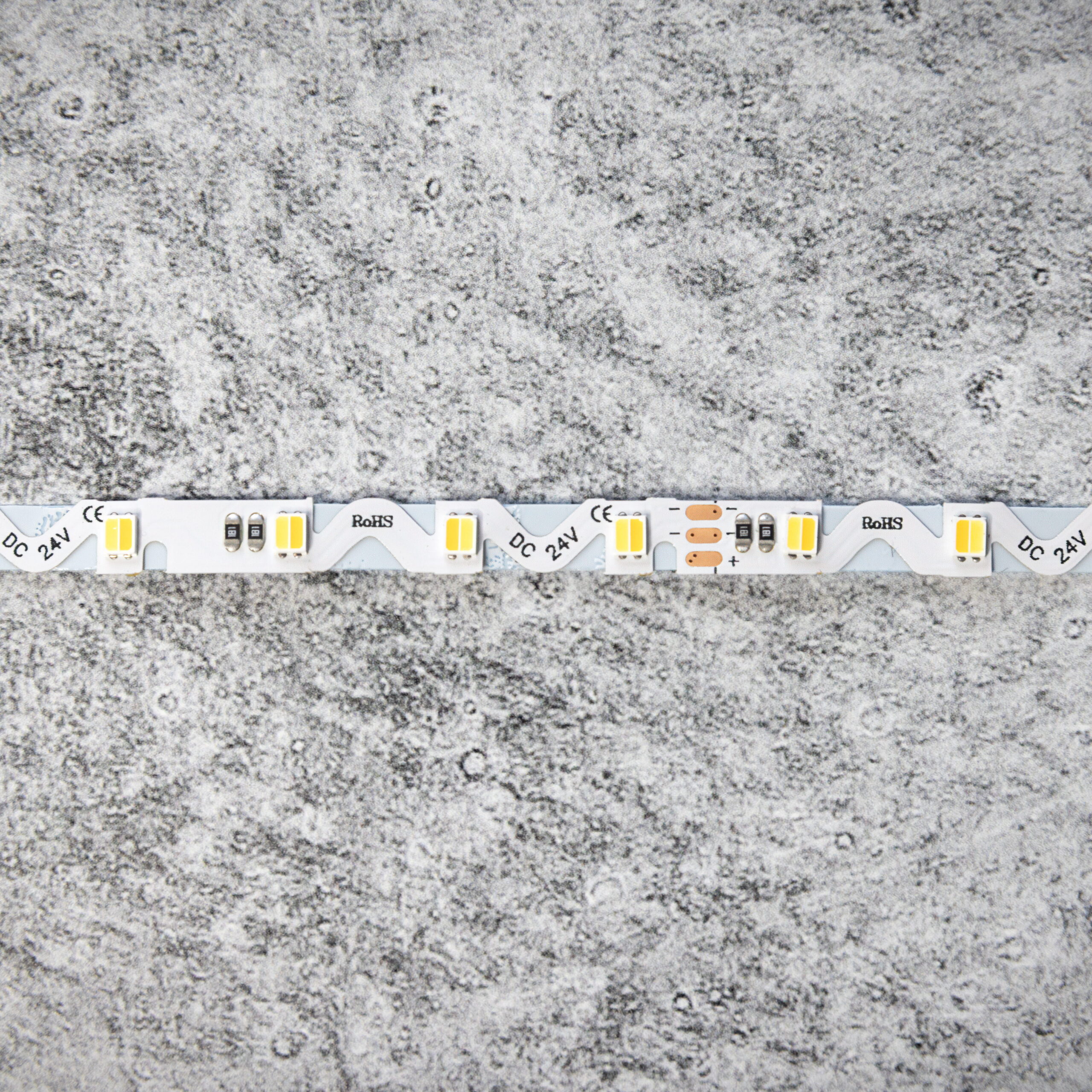

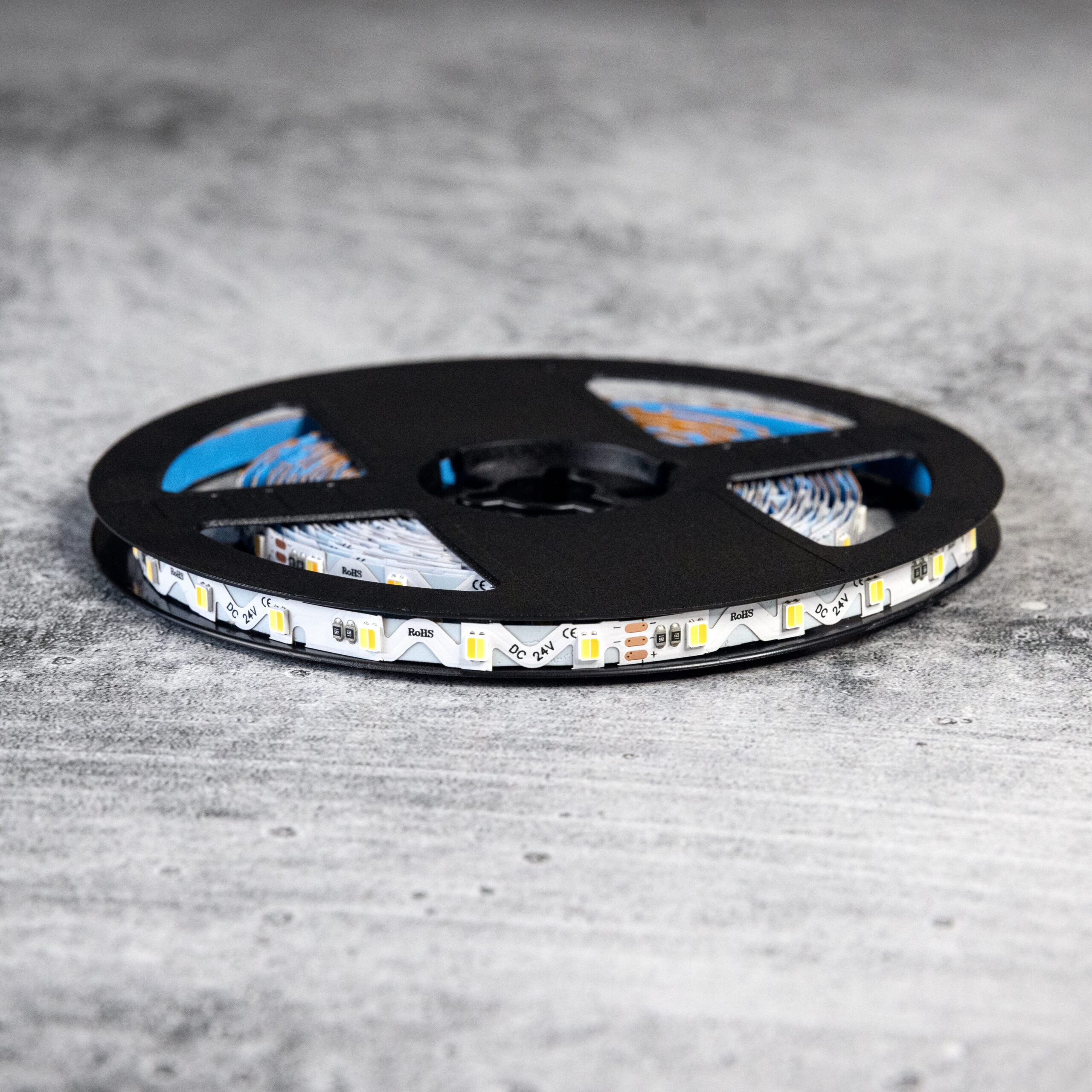

The Contour Blend “Zig Zag” is a significant step forward from traditional S-shape tape — redesigned from the PCB up to solve the installation problems that have frustrated lighting teams for years. Where S-shape tape required pinching, fastening, and gluing to hold tight curves and right angles, the Zig Zag’s trimmed PCB layout removes everything unnecessary from the board, allowing the tape to lay flat into sharp corners and dramatic curves on its own. No coaxing. No adhesive workarounds. Just clean, repeatable geometry straight out of the roll.
The result is a tape purpose-built for lettering, signage, curved architectural details, and any application where the light path changes direction and needs to stay there. At 6mm wide with 72 LEDs per meter on a 2835 chip, it delivers up to 1,069 lm of tunable white output across the full 2700K to 6500K range — warm hospitality tones through crisp daylight, all on a single roll with full DMX control.
With a CRI of 93, 14.4W per meter at full power, and a 50,000-hour rated lifespan, the Contour Blend Zig Zag brings the precision of the Inphase Contour series to the installations that need it most.
Specifications:
- LED Chip: 2835
- Color Range: 2700K to 6500K Hybrid CCT
- Max Luminous Flux: 1,069 lm
- LED Count: 72 per meter
- Tape Width: 6mm / 0.24″
- Roll Length: 5M / 16.4′
- Voltage: 24V DC
- Max Power: 14.4W per meter
- CRI: 93
- IP Rating: IP20 — Indoor / Dry
- DMX Compatible: Yes
- Architecture: Constant Voltage
- Lifespan: 50,000 hours at full brightness
